Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: RSM
  • Model Number: 618 model
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: blue/white, red/grey: certification: CE standard
  • Type:Hydraulic: Shipment:Ocean and Air
  • Force:54KN: Throat Depth:450mm
  • Throat height:381mm: Stroke length adjustable:Yes
  • Numbers of insert per hour:1200: Safety Device:Yes
  • Safety Device:Yes: Forward Limited:Option
  • Main power:2.2KW: Tank capacity:38L
  • Power supply:380V/3phase/50HZ: Dimension:1.28*1.1*2.2m
  • Weight:650kg: Max insertion:M10 nut with the mild steel
  • Electricity:10A: Warranty:1 year

Packaging & Delivery

Packaging Details packing :export plywood box
Delivery Time 15 days if we confirmed 30% deposit, 70% balance before delivery
INSERTION MACHINE
TECHNICAL DATAS

fastener insertion press-416 model

1.Force:44KN

2.Throat Depth:406mm

3.Throat Height:340mm

4.Stroke Length Adjustable:Yes

5.Numbers Of Inserts Per Hour(Manually):1200

6.Ram Force Repeat Accuracy:+/-1%

7.Safety Device:Yes

8.Manual Turret Insertion System(Optional):Yes

9.Automatic Feeding System(Optional):No

10.Clinching Joint System(Optional):Yes

11.Dwell time:No

12.Forward Limited:No

13.Batch Counter(optional):No

14.Main Power:1.5KW

15.Tank Capacity:38L

16.Power Supply:220V/single phase/50HZ

17.Dimension(W*D*H)m:1.28*1.1*2.1

18.N.W.(KG):350KG

fastener insertion press-618 model

1.Force:54KN

2.Throat Depth:450mm

3.Throat Height:381mm

4.Stroke Length Adjustable:Yes

5.Numbers Of Inserts Per Hour(Manually):1200

6.Ram Force Repeat Accuracy:+/-1%

7.Safety Device:Yes

8.Manual Turret Insertion System(Optional):Yes

9.Automatic Feeding System(Optional):Yes

10.Clinching Joint System(Optional):Yes

11.Dwell time:Standard

12.Forward Limited:Option

13.Batch Counter(optional):Yes

14.Main Power:2.2KW

15.Tank Capacity:38L

16.Power Supply:380V/3phase/50HZ

17.Dimension(W*D*H)m:1.28*1.1*2.1

18.N.W.(KG):650KG

TECHNICAL DATAS-824MODEL

1.Force:72KN

2.Throat Depth:610mm

3.Throat Height:421mm

4.Stroke Length Adjustable:Yes

5.Number of Inserts Per Hour(Manually)1200

6.Ram Force Repeat Accuracy:+/-1%

7.Safety Device:Yes

8.Manual Turret Insertion System(Optional):Yes

9.Automatic Feeding System(Optional):Yes

10.Clinching Joint System(Optional):Yes

11.Dwell time:Standard

12.Forward Limited:Standard

13.Batch Counter(Optional):Yes

14.Main Power:3.75KW

15.Tank Capacity:76L

16.Power Supply:380V/3 phase/50HZ

17.Dimension(W*D*H)m:1.64*1.12*2.4m

18.Net Weight:950kg

MAIN FEATURES

FASTENER INSERTION MACHINE-824 WITH MANUAL AND AUTO

-High Stiffness, structure, high stability, less vibration, high accuracy

-Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator

-Quick press force setting and repeatability +/-1%

-Force range MAX 72KN

-Throat depth 610mm

-100% safety system

-Energy saving re-design reliability and eneryy efficiency of a full hydraulic system

-Optional auto feeding system and clinching joint system

-Possibility to insert M12 nut with the mild steel

-RED & GREY color OR BLUE & WHITE color

-Standard power supply 3 phase 380V/50HZ

-Variable dwell time for use stainless steel M8 nut and materials and the others hard materials

MORE VIDEOS

FASTENER INSERTION MACHINE WITH 100% SAFETY DEVICE: https://www.youtube.com/watch?v=W3khvxhbSII

HYDRAULIC INSERTING PRESS 618 MODEL+BTM CLINCHING JOINT SYSTEM:

https://www.youtube.com/watch?v=XW0fBPhYVQI

INSERTION PRESS 618 MODEL+TOPFEEDER FOR STANDOFF

https://www.youtube.com/watch?v=YqrQ_WN3OAw

INSERTION PRESS 618 MODEL+BOTTOMFEEDER FOR NUT

https://www.youtube.com/watch?v=rAg1nORaViQ

INSERTION PRESS 824 MODEL+TOPFEEDER FOR NUTS01

https://www.youtube.com/watch?v=3XKWRA4cKPc

INSERTION PRESS 824 MODEL+TOPFEEDER FOR NUTS02

https://www.youtube.com/watch?v=Wohd8OUyllo

INSERTION MACHINE 824 MODEL+BTM CLINCH JOINT

https://www.youtube.com/watch?v=R9rlQ0h_bz8

HARDWARE INSERTION MACHINE WITH AUTO BOTTOMFEEDER TOOLING FOR NUTS

https://www.youtube.com/watch?v=htLA76iph6Q

INSERTION MACHINE WITH PRESSURE PARAMETERS:

https://www.youtube.com/watch?v=DhShty4EMdA

FASTENER INSERTION PRESS 416 MODEL:

https://www.youtube.com/watch?v=lA_1E2AIdkQ

HARDWARE INSERTION MACHINE 416 MODEL+TIS PARTS(OPTIONAL)

https://www.youtube.com/watch?v=f4zusyQuxNc





LOOKING FOR DEALERS

Looking for new products to present in your market? Are you familiar with our products and would like to offer them into your market? Should you see an opportunity for our co-operation, please do not hesitate to contact us! Thanks a lot!

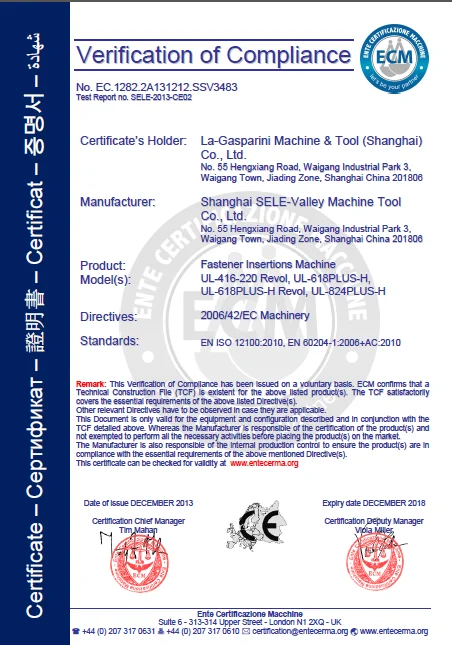

CE STANDARD
NOTICE

Dear all customers: The prices, products informations and other contents which showed on the ALIBABA just for reference only.

The final sales will be based on the mutual agreements, thanks for your kindly attentions!
