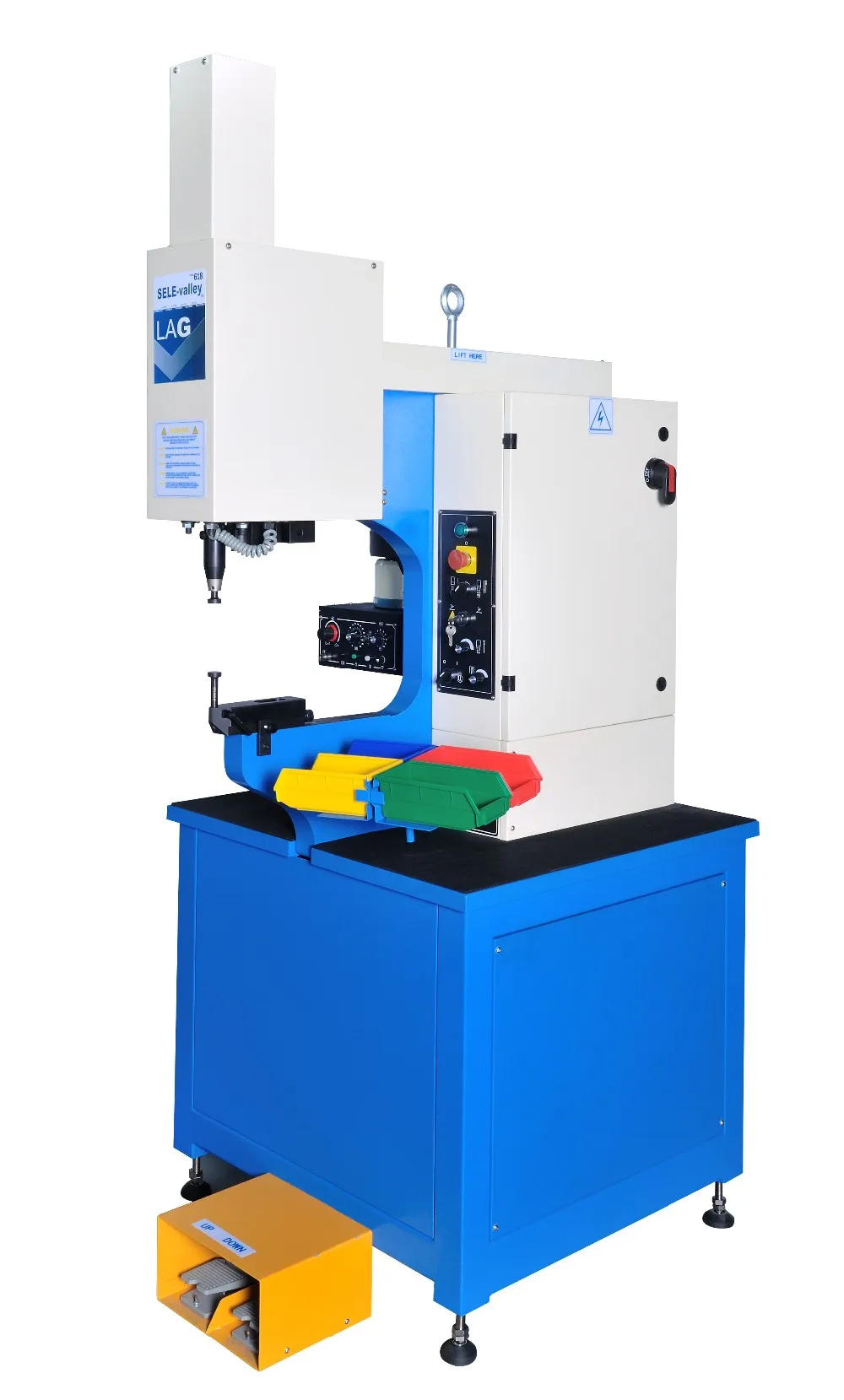

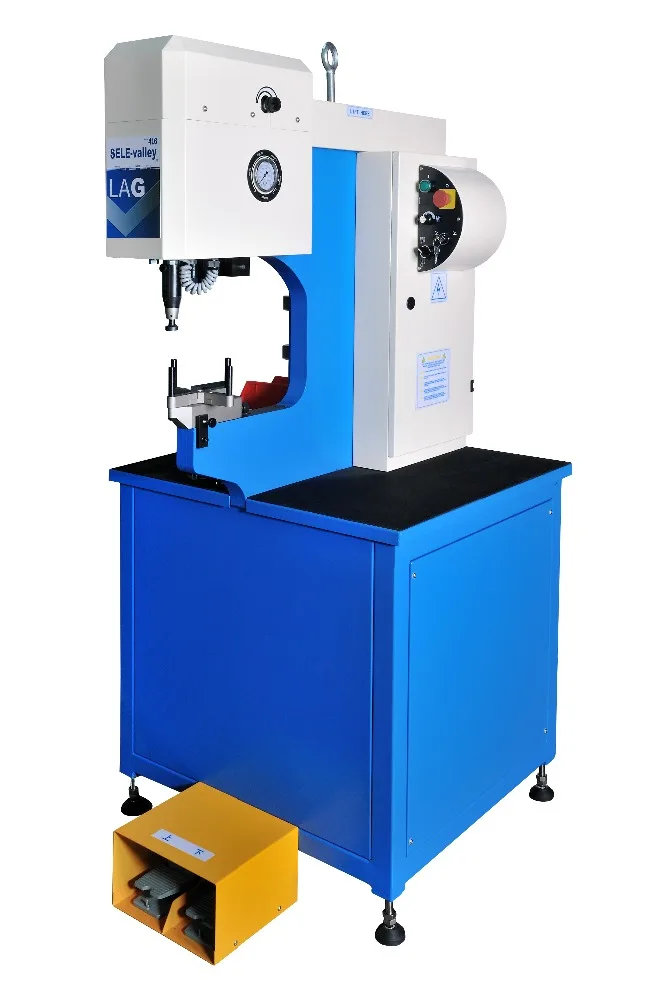

Hydraulic Insertion Machine for different fasteners(618 model with autofeeder)

FOB Reference Price:Get Latest Price
$9,000.00 - $13,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
618 model
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
RSM
Condition:
New
Color: blue/white, red/grey:
certification: CE standard
Packing:wooden box:
type:Hydraulic
Force:54KN:
Throat depth:450mm
Throat Height:381mm:
Stroke Length Adjustable:Yes
Numbers of inserts per hour:1200:
Ram Force Repeat Accuracy:+/-1%
Safety Device:Yes:
Manual Turret Insertion system:optional
Automatic feeding system:optional:
Clinching Joint system:optional
Dwell time:Standard:
Forward Limited:Optional
Batch counter:optional:
Main power:2.2KW
Tank capacity:38L:
Power supply:380V/3phase/50HZ
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
packing :export plywood box
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
INSERTION MACHINE
INSERTION PRESSES

TECHNICAL DATAS-416MODEL

Force:44KN

Throat Depth:406mm

Throat Height:340mm

Stroke Length Adjustable:Yes

Number of Inserts Per Hour(Manually)1200

Ram Force Repeat Accuracy:+/-1%

Safety Device:Yes

Manual Turret Insertion System(Optional):Yes

Automatic Feeding System(Optional):No

Clinching Joint System(Optional):Yes

Dwell time:No

Batch Counter(Optional):No

Main Power:1.5KW

Tank Capacity:38L

Power Supply:220V/single phase/50HZ

Dimension(W*D*H)m:1.28*1.1*2.1m

Net Weight:350kg

TECHNICAL DATAS-618MODEL

Force:54KN

Throat Depth:450mm

Throat Height:381mm

Stroke Length Adjustable:Yes

Number of Inserts Per Hour(Manually)1200

Ram Force Repeat Accuracy:+/-1%

Safety Device:Yes

Manual Turret Insertion System(Optional):Yes

Automatic Feeding System(Optional):Yes

Clinching Joint System(Optional):Yes

Dwell time:Standard

Forward Limited:Option

Batch Counter(Optional):Yes

Main Power:2.2KW

Tank Capacity:38L

Power Supply:380V/3 phase/50HZ

Dimension(W*D*H)m:1.28*1.1*2.1m

Net Weight:650kg

TECHNICAL DATAS-824MODEL

Force:72KN

Throat Depth:610mm

Throat Height:421mm

Stroke Length Adjustable:Yes

Number of Inserts Per Hour(Manually)1200

Ram Force Repeat Accuracy:+/-1%

Safety Device:Yes

Manual Turret Insertion System(Optional):Yes

Automatic Feeding System(Optional):Yes

Clinching Joint System(Optional):Yes

Dwell time:Standard

Forward Limited:Standard

Batch Counter(Optional):Yes

Main Power:3.75KW

Tank Capacity:76L

Power Supply:380V/3 phase/50HZ

Dimension(W*D*H)m:1.64*1.12*2.4m

Net Weight:950kg

MAIN FEATURE

FASTENER INSERTION MACHINE-618 MODEL WITH MANUAL AND AUTO

-High Stiffness, structure, high stability, less vibration, high accuracy

-Ergonomic design frame and different size tooling package with easy operation panel to meet most of the complex insertion process by single operator

-Quick press force setting and repeatability +/-1%

-Force range MAX 54KN

-Throat depth 458mm

-100% safety system

-Energy saving re-design reliability and eneryy efficiency of a full hydraulic system

-Optional auto feeding system and clinching joint system

-Possibility to insert M10 nut with the mild steel

-RED & GREY color OR BLUE & WHITE color

-Standard power supply 3 phase 380V/50HZ


MORE VIDEOS

FASTENER INSERTION MACHINE WITH 100% SAFETY DEVICE: https://www.youtube.com/watch?v=W3khvxhbSII

HYDRAULIC INSERTING PRESS 618 MODEL+BTM CLINCHING JOINT SYSTEM:
https://www.youtube.com/watch?v=XW0fBPhYVQI

INSERTION PRESS 618 MODEL+TOPFEEDER FOR STANDOFF
https://www.youtube.com/watch?v=YqrQ_WN3OAw

INSERTION PRESS 618 MODEL+BOTTOMFEEDER FOR NUT
https://www.youtube.com/watch?v=rAg1nORaViQ

INSERTION PRESS 824 MODEL+TOPFEEDER FOR NUTS01
https://www.youtube.com/watch?v=3XKWRA4cKPc

INSERTION PRESS 824 MODEL+TOPFEEDER FOR NUTS02
https://www.youtube.com/watch?v=Wohd8OUyllo


INSERTION MACHINE 824 MODEL+BTM CLINCH JOINT
https://www.youtube.com/watch?v=R9rlQ0h_bz8

HARDWARE INSERTION MACHINE WITH AUTO BOTTOMFEEDER TOOLING FOR NUTS
https://www.youtube.com/watch?v=htLA76iph6Q

INSERTION MACHINE WITH PRESSURE PARAMETERS:
https://www.youtube.com/watch?v=DhShty4EMdA

FASTENER INSERTION PRESS 416 MODEL:
https://www.youtube.com/watch?v=lA_1E2AIdkQ

HARDWARE INSERTION MACHINE 416 MODEL+TIS PARTS(OPTIONAL)
https://www.youtube.com/watch?v=f4zusyQuxNc





LOOKING FOR DEALERS

Looking for new products to present in your market? Are you familiar with our products and would like to offer them into your market? Should you see an opportunity for our co-operation, please do not hesitate to contact us! Thanks a lot!


CE STANDARD
NOTICE

Dear all customers: The prices, products informations and other contents which showed on the ALIBABA just for reference only.The final sales will be based on the mutual agreements, thanks for your kindly attentions!

QUALITY


Fasteners utilize self-clinching, broaching, flaring, surface mount, technology to provide strong, reusable, and permanent threads and mounting points in thin sheet metal, P.C. board materials, and other ductile or non-ductile thin material.
Insertion machine is not a part of the manufacturing process where manufacturers want to invest a great deal of human resources. It is often monotonous work and can dramatically impact on production line quality and efficiency. The machine optimize labor, improve quality and increase productivity. The insertion machine also reduce part handing and part damage, and can be also customized to suit highly specialized applications.
